Deep Pocket Machining: Screen the Risk Before You Quote
Published 2026-10-19 · Design Tips
Deep pocket machining is a quote risk when the pocket is deeper than the cutter can reach with stable support. Screen your uploaded CAD by pocket depth, opening width, cutter diameter, corner radius, tolerance zone, and datum scheme. Change one variable before quoting if the required finish or perpendicularity forces excessive tool overhang.
This guide uses Dazao Machinery’s documented failure case, Suuxiang’s reach review method, and an anonymized CNC Instant Quote CAD example. The goal is a buyer decision: identify the geometry that will raise cycle time, reduce finish capability, or require a design change.
How do you screen a deep pocket before requesting a quote?
Your uploaded pocket needs a reach review before a price can be trusted. Use pocket depth to cutter diameter as the first screen, then check opening width, holder clearance, corner radius, tolerance zone, and datum scheme together.
Suuxiang treats tool reach as a geometric requirement, not a depth number. A cutter may reach the floor while the holder collides with the opening or nearby wall. A larger cutter improves stiffness but needs more room and leaves a larger corner radius. If you are deciding between machine approaches, CNC Router vs Mill: Choose from Your CAD is the relevant neighboring guide.
| CAD signal | Likely process consequence | Decision / use when |
|---|---|---|
| Depth above 4× cutter diameter | Reach and stiffness become the controlling risks; cutting parameters may need reduction. | Request engineering review before promising finish or perpendicularity. |
| Narrow opening with small corner radius | The cutter may fit only at a smaller diameter, reducing stiffness at depth. | Keep the geometry only when the radius and opening are functionally required. |
| Wider opening with larger radius | A larger cutter can enter with better support and lower corner-force spikes. | Use when clearance is nonfunctional and the mating design permits it. |
| Through pocket instead of blind pocket | Access and chip exit may improve, but the floor function changes. | Use only when the blind floor is not required for sealing, locating, or clearance. |
How does deep pocket machining fail in production?

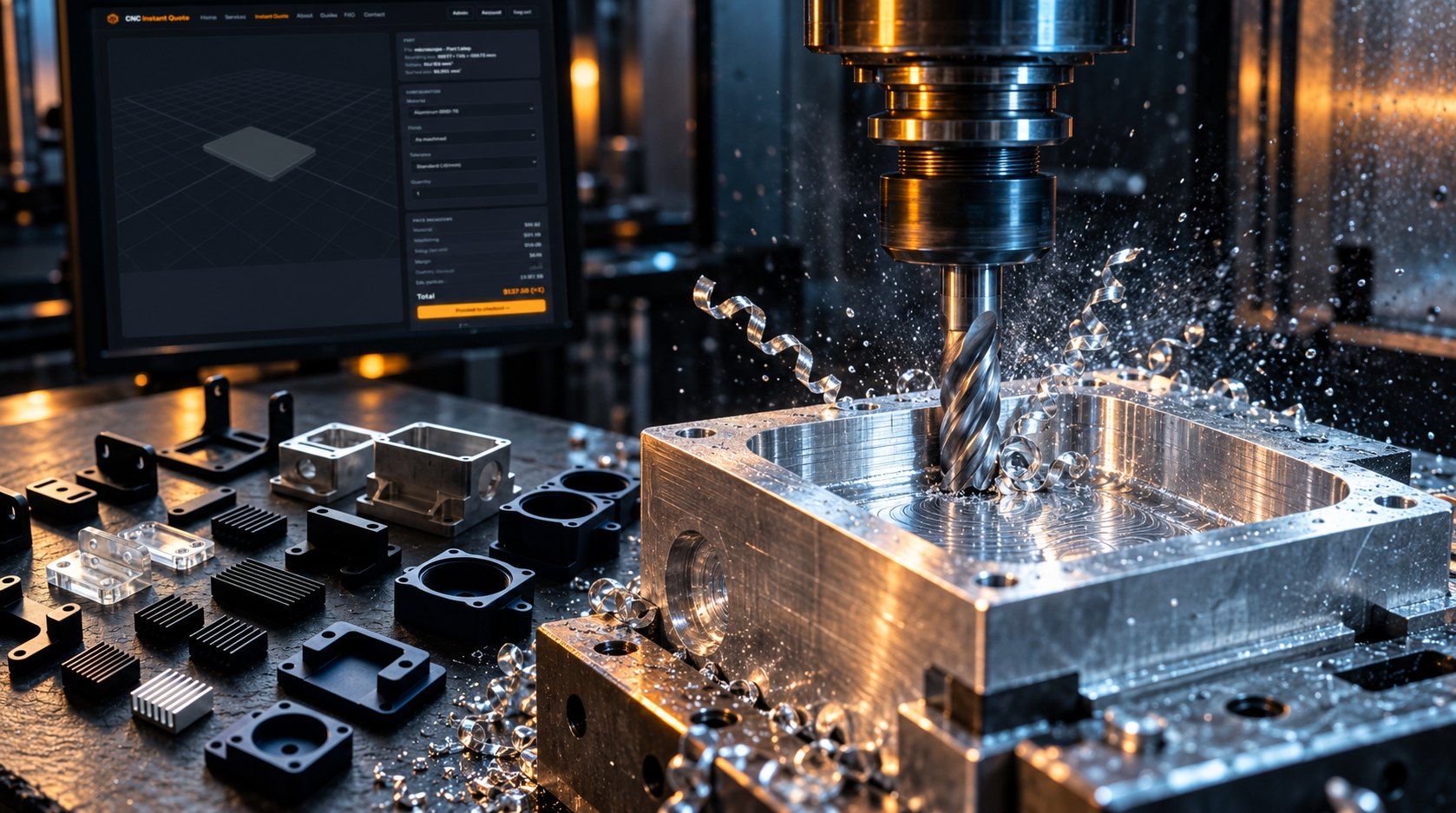

Deep pocket machining fails when long unsupported tooling bends under radial load, then recuts chips, builds heat, triggers chatter, and leaves tapered walls. The defect usually appears as a geometry and finish problem, not as a broken tool.
Dazao Machinery reports an Al7075-T651 enclosure with a 110 mm-deep, 45 mm-wide pocket, R4 corners, and an 8 mm finishing end mill. Inspection found 0.14 mm of inward wall taper and Ra 3.2 µm instead of the required Ra 0.8 µm. Fifteen housings were rejected. The same report notes 0.08 mm corner gouging from deflection recovery.
Why does 3×D to 6×D change the result?
Dazao explains the stiffness penalty with cantilever mechanics: increasing tool overhang from 3×D to 6×D reduces stiffness by eight times. At longer reach, the tool tip moves under cutting force, the neck can rub the wall, and regenerative chatter becomes easier to trigger. That is the practical tool deflection milling problem your quote must expose.
The failure chain is predictable. Unsupported length raises deflection. Deflection changes chip load. Poor chip evacuation causes recutting and heat. Heat and changing engagement promote chatter. The final wall can taper inward, while the floor misses its surface-finish target.
Which geometry changes reduce deep pocket quote risk?
The most useful geometry changes give the cutter more diameter, more opening clearance, or a shorter unsupported reach. Widening the opening, increasing the internal radius, and making the pocket through can reduce finishing risk when the part’s function allows those changes.
What did one anonymized CAD revision change?

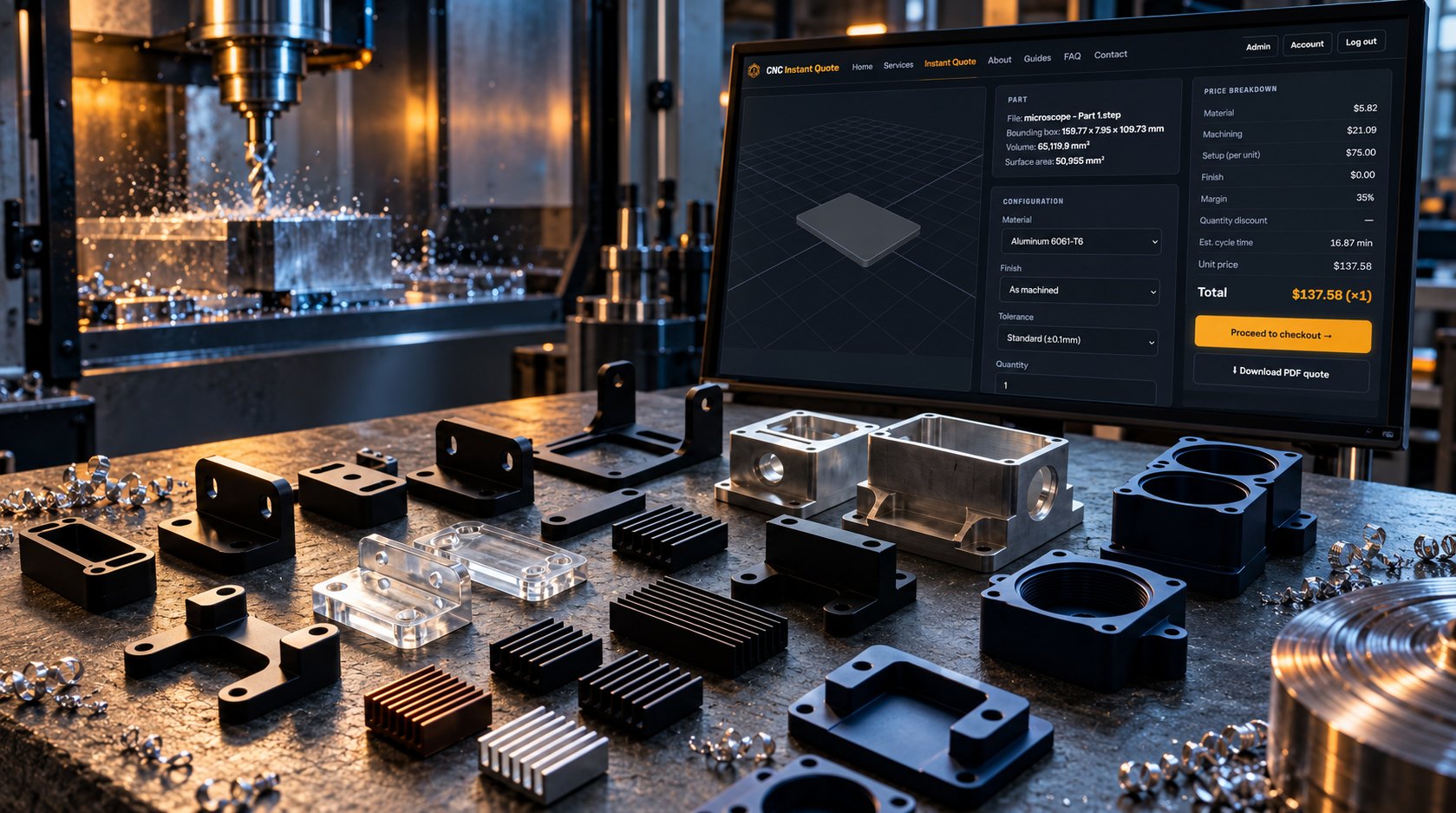

In an anonymized CNC Instant Quote review, a 6061-T6 manifold pocket was 72 mm deep, 32 mm wide, and R3, with a 6 mm finishing end mill. The original quote flagged long reach. Widening the opening to 42 mm and increasing the radius to R6 allowed a 10 mm finisher. At quantity 4, the quote record changed from 19.4 to 12.1 minutes of cycle time and from $184 to $139 per unit. The blind floor remained unchanged.
That revision connects a CAD decision to a price decision. If your part has several unrelated cost drivers, compare the wider trade-offs in CNC Machining Design Mistakes Cost You More Than You Think. If material or supply conditions also affect the number, see CNC Machining Tariffs 2026: Why Your Quote Costs More.
What belongs in a deep pocket quote request?
A deep pocket quote should include the feature dimensions and the acceptance criteria that determine whether long-reach tooling is acceptable. Send the following values with your STEP file and drawing.
- Pocket depth in mm — If omitted, the shop cannot calculate reach or identify the long-overhang failure mode.
- Opening width — If omitted, holder clearance and cutter access may be assumed incorrectly.
- Cutter diameter — If omitted, the pocket depth to cutter diameter ratio cannot be screened.
- Corner radius — If omitted, the shop may choose a smaller cutter than the design can tolerate, increasing deflection risk.
- Wall perpendicularity — If omitted, a tapered wall may pass a simple size check while failing the functional requirement.
- Floor finish — State the target, such as Ra 0.8 µm, so roughing and finishing allowances are priced correctly.
- Material grade — Specify the condition, such as 6061-T6 or Al7075-T651, because material behavior affects the process window.
- Quantity — Setup and inspection effort are spread differently across 1, 4, or 15 parts.
- Datum scheme — Define the functional references for the floor, walls, and perpendicularity inspection.
Quantity also changes the value of a geometry revision. A wider opening may reduce cycle time on every unit, while a special holder or extra inspection step can dominate a one-piece order. State whether the pocket can be opened, radiused, or made through before the quote is released.
FAQ: deep pocket machining and quoting
Is 4×D an automatic rejection point?
No. Dazao identifies depths beyond 4×D as a rising instability zone, not an automatic rejection. The required tolerance, finish, material, holder support, and process plan determine whether the feature is practical.
Can a larger cutter solve a narrow deep pocket?
Only if the opening, corners, holder clearance, and mating function allow it. A larger cutter is generally stiffer, but it cannot enter a narrow opening or create an R3 corner without changing the geometry.
Why does the datum scheme matter before machining?
The datum scheme defines how the floor, wall, and perpendicularity will be judged. Suuxiang recommends reviewing the tolerance zone and measurement strategy with the geometry, because an accessible cutter does not guarantee an unambiguous inspection.
What should you do before uploading the part?
Mark the blind cavity’s depth, opening, radius, finish, perpendicularity, material, quantity, and functional datums. Then test whether widening the opening, increasing R, or making the pocket through preserves the design intent. If the geometry is fixed, compare the reach, holder, inspection, and finishing coverage in our CNC machine capabilities →.
