CNC Quote Thin Wall: Price the Redesign
Published 2026-09-22 · updated 2026-09-23 · Design Tips
A CNC quote thin wall review prices more than the wall dimension in your CAD model. Material, unsupported length, tool diameter, and cutting direction determine whether the cutter deflects, the wall chatters, or the shop can use normal parameters. The quote should show that failure trigger and price a controlled redesign.
OpusFab reports practical minimums of 0.8 mm for AL6061 and AL7075, 1.0 mm for S45C and 4140 steel, and 1.5 mm for SS304. Its warning triggers below 0.6 mm. OpusFab also reports a 30–50% cost reduction when a 0.4 mm wall is redesigned to 1.0 mm. Ashkan, CNC engineer at CNC Instant Quote, applies those limits to a 2026 CAD quote comparison.
What does a CNC quote thin wall check measure?
A useful thin-wall check compares thickness with material, unsupported length, tool diameter, and cutting direction. It then maps the risk to a DFM warning, machining strategy, price, and lead time. A 0.8 mm wall is not a universal pass because a long free-standing section can still deflect.
| Material | Practical minimum wall | Main quote risk | Use when |
|---|---|---|---|
| AL6061 | 0.8 mm | Deflection and chatter below the baseline | General aluminum housings and brackets |
| AL7075 | 0.8 mm | Cutting force and tolerance loss on long walls | High-strength aluminum with supported geometry |
| S45C | 1.0 mm | Higher cutting force than aluminum | Shorter walls with stable workholding |
| 4140 steel | 1.0 mm | Deflection, heat, and longer cutting time | Machined steel features with adequate support |
| SS304 | 1.5 mm | Work hardening and unstable thin sections | Stainless parts where wall stiffness matters |
OpusFab says its DFM warning starts below 0.6 mm. That threshold is a warning boundary, not a guaranteed production limit. A 0.60 mm wall can still need a lighter radial engagement, a smaller tool, or a different cutting direction. Those changes are what move thin wall CNC pricing.
Why does unsupported length change thin wall CNC pricing?
Unsupported length controls how far the wall can spring away from the cutter. Two walls with the same thickness can receive different quotes if one is backed by material and the other is free-standing over a long span.
LS Manufacturing reported a 0.50 mm AL7075-T651 wall that missed a ±0.008 mm requirement. The process produced 16.2% scrap before trochoidal milling, stress relief, and vacuum clamping were introduced. Finishing also required at least 70% vacuum-chuck coverage. That is a direct example of how a thin wall machining cost grows when the workholding and cutting path must compensate for deflection.
Partzpro provides a different reference point: a 6061-T6 example measuring 100.02 × 60.02 × 25.02 mm, produced at 25 pieces, with wall sections down to 1.0 mm. The larger wall and controlled batch do not prove that every 1.0 mm wall is safe. They show why a CNC wall thickness quote needs the full CAD envelope, quantity, and support conditions.
See also: CNC Quote ISO 2768: Legacy Drawing Rules
How much does a 0.6 mm wall add to a quote?

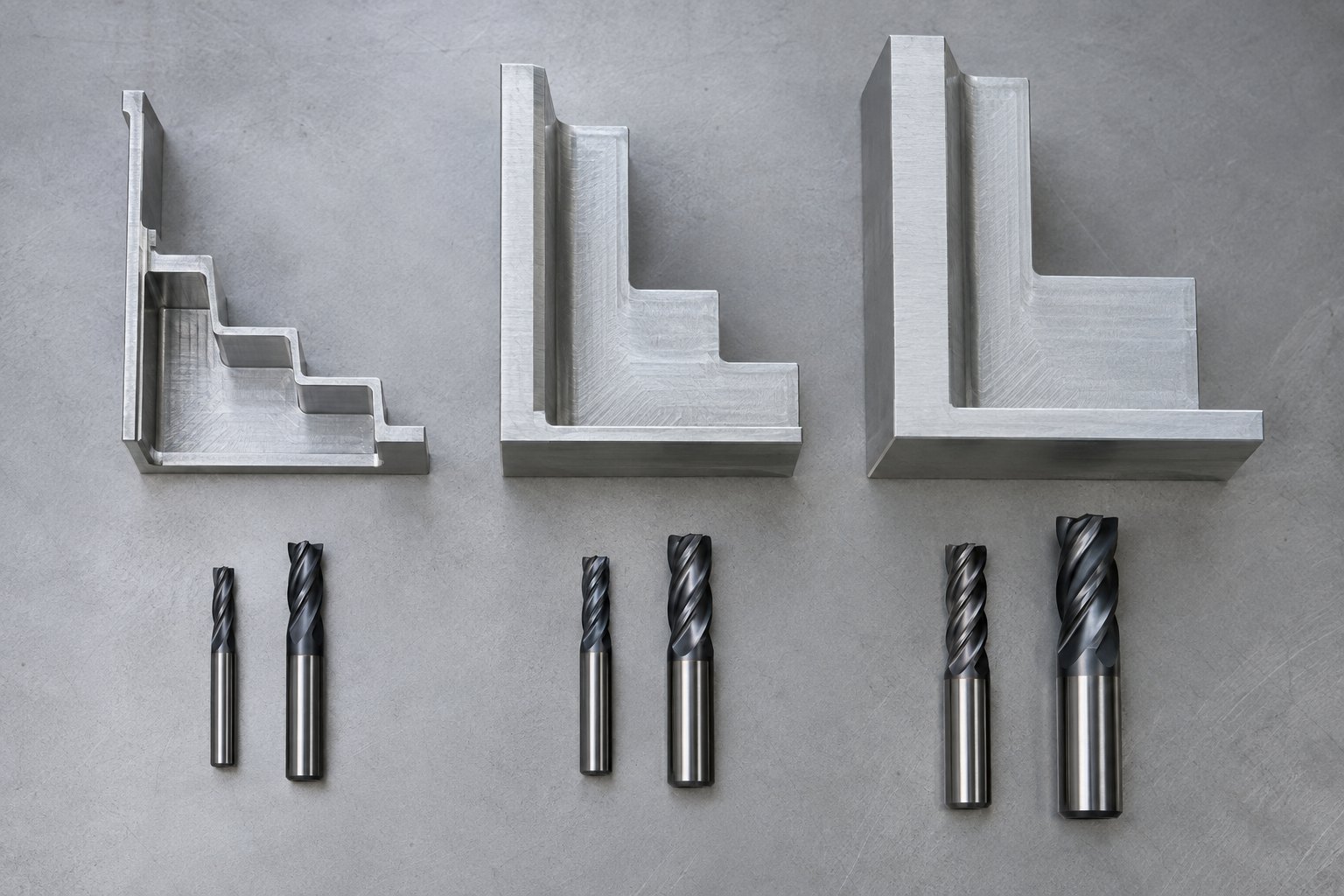

In a 2026 CNC Instant Quote comparison, the 0.6 mm revision cost more and took longer because the tool path and workholding carried less margin. The same source STEP model was revised only at the wall section. Material stayed 6061-T6, the envelope stayed 100.02 × 60.02 × 25.02 mm, and quantity stayed at 25 pieces.
| Wall thickness | Actual price per part | Lead time | DFM-warning change | Decision |
|---|---|---|---|---|
| 0.60 mm | $38.40 | 10 business days | Warning for near-threshold wall and unsupported cutting direction; vacuum coverage review required | Use only when packaging forces it |
| 0.80 mm | $29.70 | 7 business days | Thin-wall warning cleared; unsupported-length review remains | Preferred AL6061 baseline |
| 1.00 mm | $26.90 | 6 business days | No thin-wall warning | Use for lower-risk production |
The 0.60 mm revision was $11.50 more per part than the 1.00 mm revision. OpusFab reports a broader 30–50% reduction when a 0.4 mm wall becomes 1.0 mm. For the other price lever in this 25-piece quote, see CNC quote quantity breaks, shown line by line.
See also: cnc online quote
What should you change before uploading a thin-wall STEP file?
Change the wall or its support, then re-upload the revised STEP file and compare the warning, price, and lead time. Keep the material, quantity, and tolerance fixed so the redesign cost is measurable.
- Measure the free-standing length of each thin section and identify the tool approach. Failure mode: a long wall deflects under radial cutting force even when its thickness meets the material baseline.
- Compare the wall with the material limit—0.8 mm for AL6061 and AL7075, 1.0 mm for S45C and 4140, or 1.5 mm for SS304. Failure mode: the alloy needs a thicker section than the CAD model allows.
- Run controlled revisions at 0.6 mm, 0.8 mm, and 1.0 mm where packaging permits. Failure mode: the DFM warning remains or the quote shifts because the cutter still needs reduced engagement.
- Check the functional tolerance against the wall risk. A 0.50 mm AL7075-T651 wall that must hold ±0.008 mm needs process planning, not only a nominal dimension. Failure mode: scrap rises during finishing.
- If the wall must stay near 0.6 mm, confirm the quote includes the required cutting direction, stress relief, and workholding. Failure mode: insufficient vacuum-chuck coverage allows movement before finishing.
CNC quote thin wall FAQ
Is 0.8 mm always safe for aluminum?
No. OpusFab lists 0.8 mm as a practical minimum for AL6061 and AL7075. Unsupported length, tool diameter, cutting direction, and tolerance can still make the wall unstable.
Why did the 0.50 mm AL7075-T651 wall fail?
LS Manufacturing reported that the wall missed ±0.008 mm and produced 16.2% scrap before trochoidal milling, stress relief, and vacuum clamping. The wall needed at least 70% vacuum-chuck coverage before finishing.
Does a thicker wall always reduce thin wall machining cost?
No, but the redesign often reduces risk and process time. OpusFab reports a 30–50% cost reduction when a 0.4 mm wall becomes 1.0 mm. Your quote still depends on material, quantity, envelope, tolerance, and tool access.
What triggers a thin-wall DFM warning?
OpusFab triggers its warning below 0.6 mm. CNC Instant Quote also reviews near-threshold walls when unsupported length or cutting direction creates a separate risk.
What should you do with the revised STEP file?
Upload the revised model to get an instant CNC quote with a thin-wall DFM comparison. Keep your material, quantity, and tolerance unchanged while you compare 0.6 mm, 0.8 mm, and 1.0 mm walls. Choose the thickness that meets the function without paying for avoidable process control →
