Thread Milling vs Tapping: Quote the Right Risk
Published 2026-10-26 · Machining Guides
Thread milling vs tapping comes down to accepted-part cost, not the fastest spindle cycle. Tap repeated standard holes in free-cutting material, usually below 30 HRC. Choose thread milling for material above 35–40 HRC, threads below M2, blind holes deeper than 2×D, interrupted bores, or expensive parts where a broken tap can scrap the work.
I’m Ashkan, CNC engineer at CNC Instant Quote. At quote stage, convert the CAD thread feature into a process decision using material, diameter, usable depth, quantity, tolerance class, inspection, and failure cost. The goal is a reliable accepted part, not a low number for seconds per hole.
Which process fits the internal thread in your CAD?
Tap repeated standard holes in accessible, free-cutting material. Quote CNC thread milling first for hard material, interrupted holes, deep blind holes, high-value parts, or threads that need controlled pitch diameter. Below 30 HRC and at high quantities, tapping usually wins on cycle time.
| CAD or production condition | Tapping | Thread milling | Use this quote-stage rule |
|---|---|---|---|
| Material below 30 HRC | Usually efficient with suitable tooling | Adds motion and programming time | Start with tapping for stable repeat production |
| Material above 35–40 HRC | Torque and tool wear become difficult | Better control with lighter cutting engagement | Price thread milling first |
| Thread below M2 | Fast, but the small tap can be fragile | Useful when access and breakage risk dominate | Request a tooling review before choosing |
| Blind hole deeper than 2×D | Needs extra depth for lead and chip clearance | Can reach useful depth with the correct cutter | Compare both methods against actual full-thread depth |
| Repeated standard holes | Short cycle and simple tool selection | Longer orbiting motion | Use tapping unless failure cost changes the result |
| Large, interrupted, or high-value hole | Higher torque or trapped-tool exposure | Offset control and easier cutter recovery | Quote thread milling as the lower-risk route |
Saola’s engineering guide describes tapping as the practical choice for repeated standard holes and thread milling as the controlled option for large, deep, interrupted, or valuable features. Frima Parts gives the hardness, size, and depth triggers above as useful starting points, not universal laws. If your CAD leaves depth or location unclear, review CNC Machining Design Mistakes Cost You More Than You Think before releasing the part.
How do you compare thread milling cost instead of cycle time?
Thread milling cost should include programming, tooling, machining, inspection, and expected scrap. PiPrecision’s comparison is right to treat the accepted part as the unit of cost. A useful estimate is run cost plus setup and inspection, then the expected loss from rework or a failed feature.
| Cost factor | Tapping | Thread milling | What to ask for |
|---|---|---|---|
| M5×0.8 cycle | About 0.8–1.5 seconds per hole | About 6–12 seconds per hole | Show the measured or quoted cycle-time difference |
| Programming | Usually a standard tapping cycle | Helical interpolation and cutter strategy | Include programming and prove-out time |
| Tooling | Dedicated tap for each thread size and class | One cutter may cover several sizes with suitable pitch | Include tool price, life, and change time |
| Inspection | Go/no-go gauge and process checks | Gauge plus size adjustment or offset verification | State the inspection method and sampling plan |
| Failure exposure | A broken tap may stay trapped in the part | A smaller broken cutter is often easier to remove | Price the part value at the threading operation |
For one accessible M5×0.8 thread in 6061-T6, use 0.8–1.5 seconds as a tapping estimate and 6–12 seconds for milling. Across 100 holes, that is roughly 1.3–2.5 minutes versus 10–20 minutes. The milling route may take 3–10× longer per hole, so its justification must come from control, tooling flexibility, or avoided scrap. Material and sourcing assumptions can also move the blank price; compare them with CNC Machining Tariffs 2026: Why Your Quote Costs More.
When do blind holes make tapping risky?
For tapping blind holes, separate usable full-thread depth from total drilled depth. The tap needs room for its lead and chips below the last complete thread. Thread milling can place the full profile closer to the bottom, but the cutter still needs entry, exit, and clearance.
What triggers broken tap risk?
A tap carries the cutting load on a slender tool inside the bore. Chip packing, work hardening, excessive depth, poor lubrication, or a hard alloy can raise torque until the tool breaks. A broken tap trapped below the surface can turn a finished part into scrap.
- Compare full-thread depth with total drilled depth. Failure mode: the tap lead or drill point bottoms out before the required profile is complete.
- Check material hardness, lubrication, and chip escape. Failure mode: chip packing or work hardening raises torque and snaps the tap.
- Price the part before the threading operation. Failure mode: a trapped broken tap destroys a late-stage housing instead of only replacing a low-cost tool.
- Ask whether the thread can be milled with the required cutter reach. Failure mode: a long cutter deflects and leaves the thread tapered without suitable passes and inspection.
Frima Parts’ selection guidance makes depth a practical trigger: once a blind hole extends beyond about 2×D, tapping deserves a direct comparison with milling. The correct decision still depends on the usable thread length, cutter geometry, material, and the value of the part.
What should your drawing and quote request specify?
Specify the thread standard, tolerance class, usable full-thread depth, hole limits, location requirements, material, finish condition, quantity, and inspection method. Saola references ISO 965-1 for metric threads and ASME B1.1 for inch threads. Leave the machining method open unless a formed thread, coating allowance, seal, or failure-risk requirement makes the method part of the function.
- Material and condition — compare 6061-T6 with 304 stainless when the same M6×1 feature appears in both.
- Quantity — show whether the job has 2 prototype holes, 100 production holes, or 10,000 repeated holes.
- Thread class and depth — separate usable full-thread depth from total drill depth.
- Predicted process — identify tapping, thread milling, or a reason to compare both.

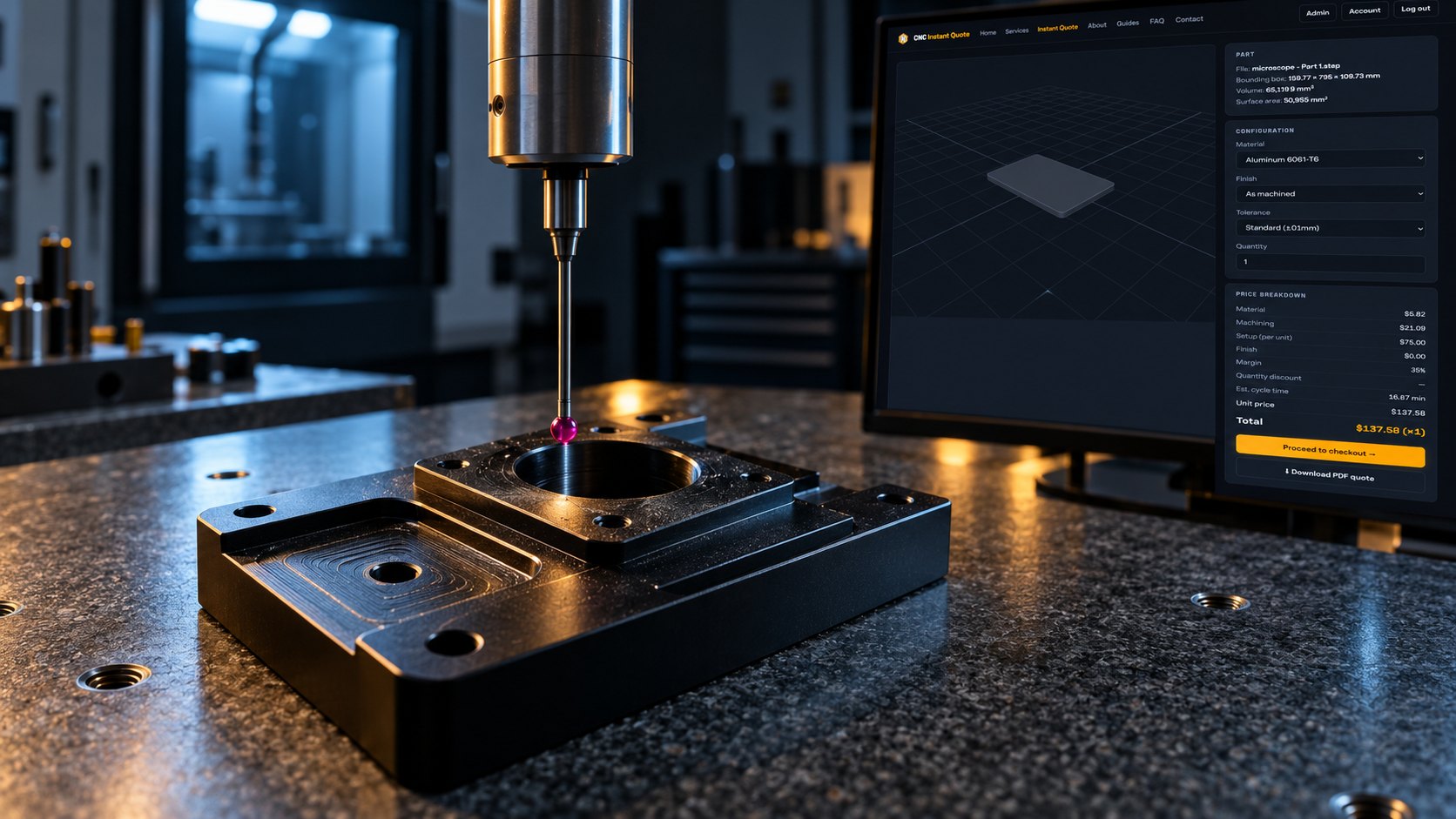

- Inspection — state plug-gauge requirements, sampling, and whether the thread must pass before or after finishing.
- Cost assumptions — include setup, tooling, programming, measured or quoted cycle time, and expected scrap exposure.
Ask CNC Instant Quote for an anonymized comparison of M6×1 blind holes in 6061-T6 and 304 stainless. Request quantity, thread class, usable depth, total depth, predicted process, and the measured or quoted cycle-time difference for each material. If you are comparing cnc shops near me, require the same assumptions in every quote.
If the same part also includes thin plate profiles or routing features, use CNC Router vs Mill: Choose from Your CAD to separate the cutting method from the internal-thread decision.
FAQ: thread milling vs tapping
Does thread milling always make a more accurate thread?
No. Both methods can meet the specified class when the process is controlled and the thread passes the required gauge. Thread milling adds useful diameter adjustment through tool offsets, but it does not correct poor hole location or inadequate inspection.
Is tapping always cheaper?
No. Tapping is often cheaper per hole, especially for repeated standard threads. A broken tap, inspection failure, rework, or scrapped late-stage part can make thread milling the lower-cost process per accepted part.
Should your drawing force one threading method?
Usually not. Define the thread, class, depth, position, finish condition, and inspection requirement. Name tapping or milling only when the part’s function depends on that process choice.
What should you select at quote stage?
Use tapping for stable, repeated standard holes where cycle time dominates and the tap can clear the feature safely. Use thread milling when hardness, depth, interruption, size, adjustment, or part value increases the cost of failure. CNC Instant Quote supports CNC milling and turning in aluminum, copper, brass, steel, and plastics from CAD geometry. Review our CNC services for an engineering-led process and price comparison →
