CNC Machining Large Aluminum Cylinder Cost

CNC machining large aluminum cylinder cost runs 1.5 to 2 times higher per pound than a small bracket cut from the same 6061-T6 bar. Two mechanical facts drive it: how much aluminum gets thrown away as chips, and how long the spindle runs to remove it. Neither has anything to do with tolerance or surface finish.

If you're pricing an 8 inch aluminum cylinder CNC cost for a manifold housing, pump body, or bushing blank, this is the stock and roughing math sitting underneath that number — worth understanding before you upload the STEP file.

What Drives CNC Machining Large Aluminum Cylinder Cost

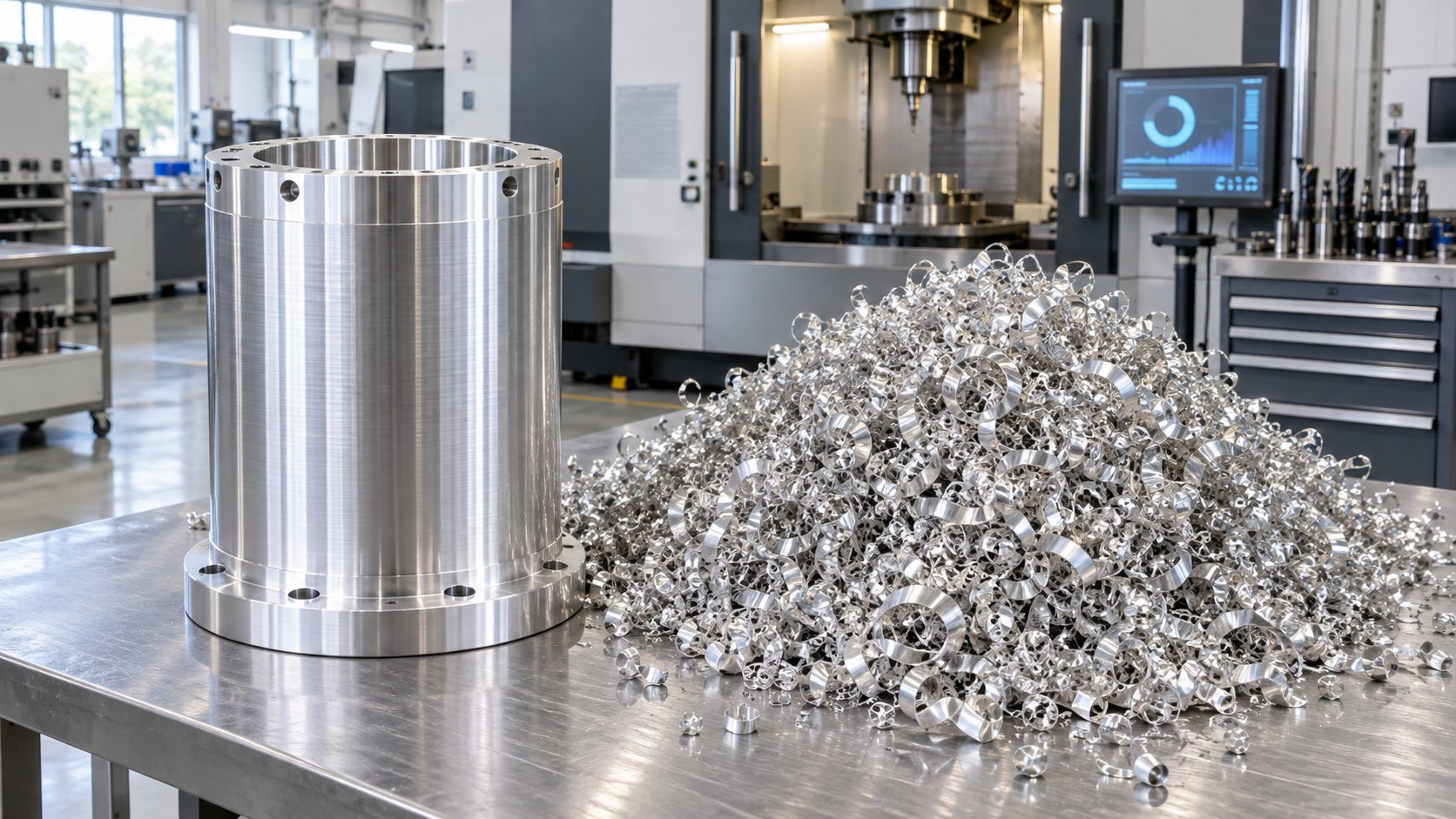

An 8 inch OD aluminum cylinder is not a scaled-up bracket. Start with a solid 6061-T6 round bar big enough to bore the part from — say 8.5 inch OD stock for a finished 8 inch OD with a 3 inch bore — and you're paying for a cylinder of metal that mostly ends up as chips in the coolant tank. A 4 inch bracket wastes maybe 20% of its blank. A large-bore cylinder machined from solid can waste 40-50% of the starting bar weight, because the core you bore out grows with the square of the diameter while the finished part's wall stays thin.

The Big Round Stock CNC Waste Factor

Makerverse's 2026 CNC costing guide lists a standard 30% waste allowance for stock and clamping material as a baseline line item on a typical quote. That figure works fine for a bracket or plate cut from flat stock. It breaks down fast on large round parts, because the big round stock CNC waste factor isn't linear — it's geometric. Double the OD of a cylinder and the cross-sectional area you bore out roughly quadruples, so the waste allowance on an 8-10 inch part routinely runs closer to 45-55% than the 30% baseline.

This is also where a large diameter aluminum tube machining price can undercut a solid-bar quote by a wide margin. A 6061-T6 seamless tube with an ID close to your finished bore already has the core removed. You're paying for the wall thickness you actually need, not for a solid billet you then spend an hour boring out.

Roughing Time Scales Faster Than Size

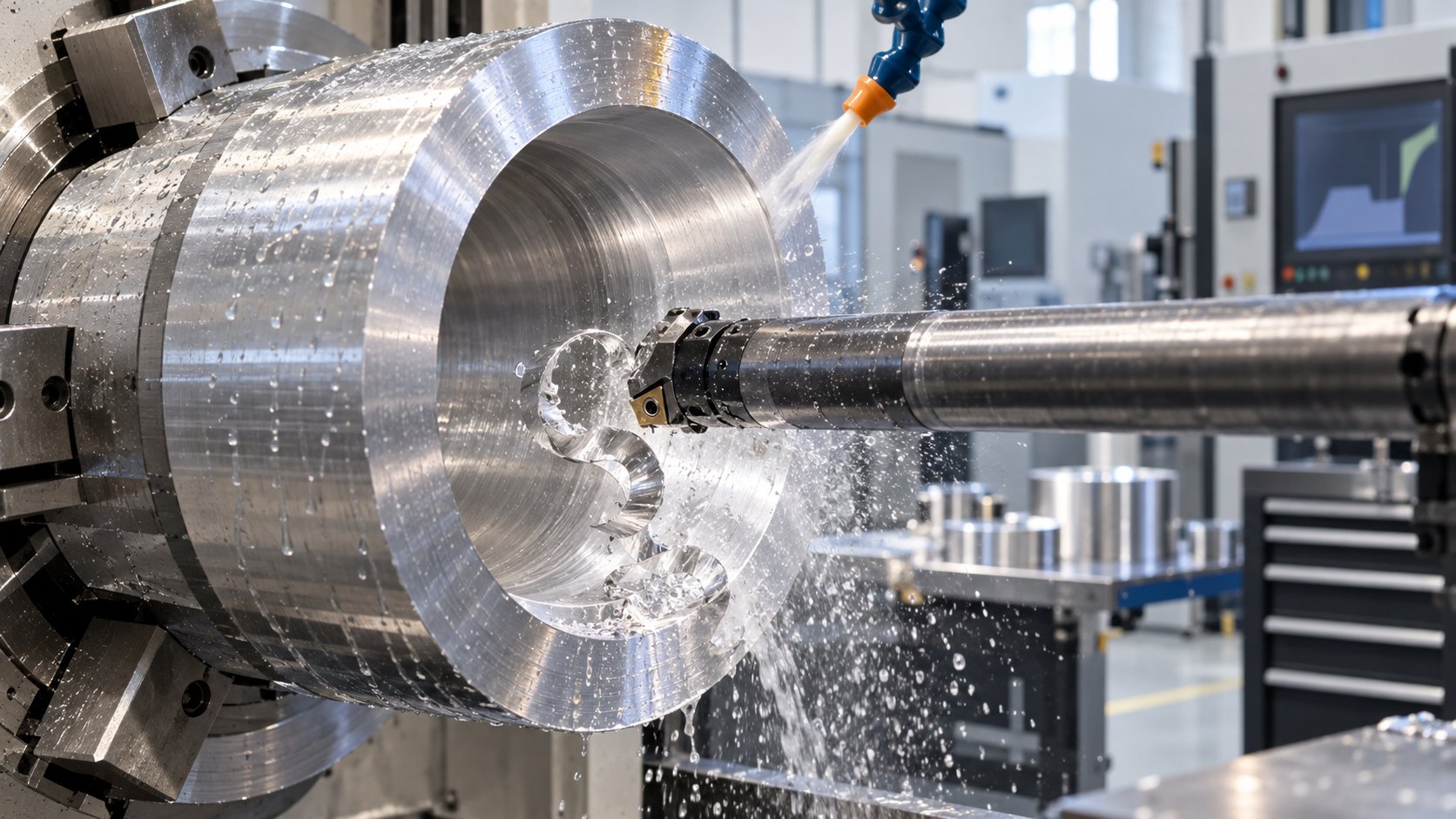

Xavier's 2026 cost guide notes that complexity and material removal volume swing CNC machining price more than part size alone, and large-bore aluminum backs that up on the shop floor. Boring a 3 inch hole through 6 inches of solid 6061-T6 takes several roughing passes at reduced feed, because a long boring bar deflects more than a short end mill reaching into a tube. Machining time on a solid-bar cylinder can run 2-3 times longer than the same finished geometry cut from tube, where the roughing pass is mostly facing and finish-boring instead of core removal. That machine-time difference, not the material cost per pound, is usually the bigger half of a large bore aluminum part quote.

How the Instant Quote Engine Picks Your Stock

Upload a STEP file to CNC Instant Quote and the engine reads the part's actual bounding cylinder and bore diameter before it prices anything. It checks the nearest stock size in both solid round bar and tube, and it flags when starting from pre-bored tube instead of solid bar would cut your cost. You see that flag before you submit the order, not after a manual quote comes back high.

A few things worth checking on the geometry side before you upload:

• Confirm your bore tolerance can hold on a tube ID — if it needs finish-boring anyway, tube stock rarely costs more than solid bar.
• Check wall thickness against your load case; thick-wall tube (3/8 inch and up) covers most manifold and housing bores.
• Flag any cylinder over 6 inch OD for a stock comparison — this is where solid bar starts losing on both material and roughing time.

FAQ: Large Aluminum Cylinder Cost

Does a thicker tube wall always mean a cheaper quote?

No. A thicker wall closes the gap to solid bar. Tube saves money when the wall is close to your finished part thickness, so you're not re-boring most of the ID anyway.

When does solid bar still make sense for a large cylinder?

When the finished part needs a small bore relative to its OD, or a stepped OD that a tube blank can't hold. At that point you aren't saving much core material by switching to tube.

How much can tube stock save on an 8-10 inch aluminum part?

In practice we see 20-35% off the machining line item alone, from cutting roughing time, plus whatever the 6061-T6 tube-versus-bar material spread adds on top.

Get a Straight Number on Your Cylinder

Stock waste and roughing time are the two levers that actually move a CNC machining large aluminum cylinder cost quote — not finish, not tolerance. If your design has flexibility on wall thickness, checking tube stock before you commit to solid bar is the single best move for the price. Upload your STEP file to the Instant Quote tool and see the stock comparison and roughing estimate for your own geometry in seconds.
